Schematic

Item number and size

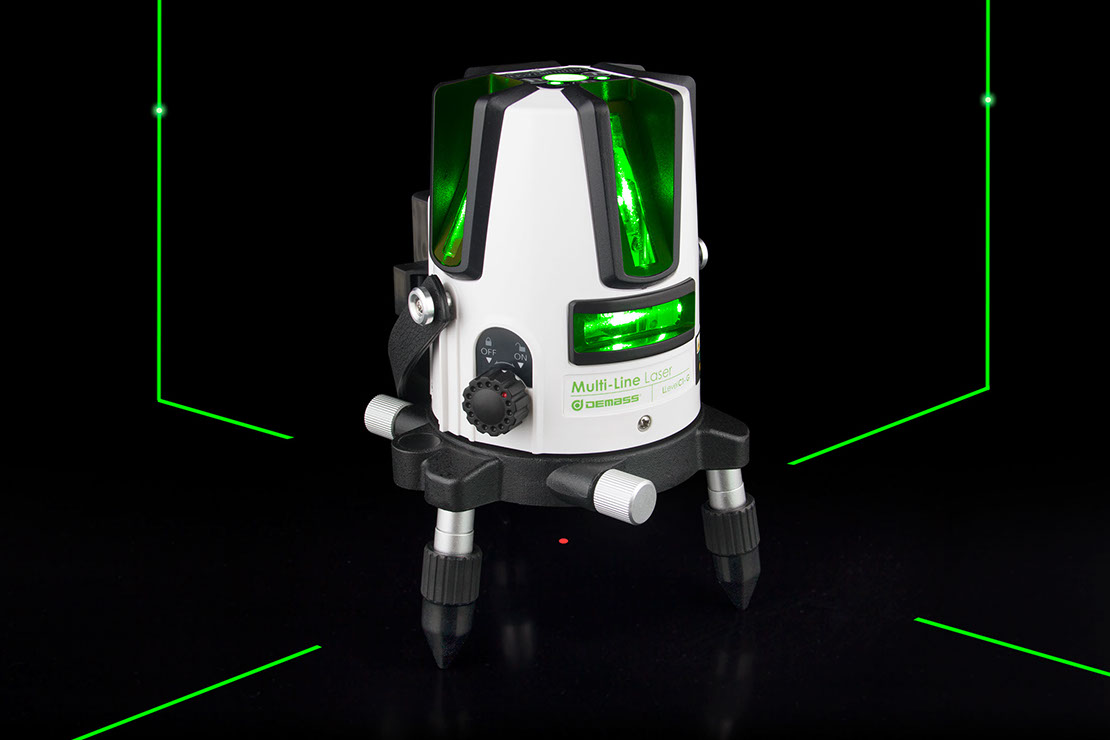

LLevel C1 - G



Label



ABS



Label



Housing





Technical data



Item number



Laser colour



Laser diode ( Optional )



Laser hazard class



Laser max. output



Laser wave length



Accuracy



Laser module



Compensation range



Self-leveling time



Self-leveling method



Operating distance



Operating distance with detector



Operating temperature



Storage temperature



Operating time



Battery type



Ingress protection



Device diamension



Device weight

LLevel C1 - G



Green



DPSS 10mW / SHARP 10mW / Osran 10mW



Class 2



≤ 1mW



532 ±10 nm / 515 ±10 nm / 520 ±10 nm



± 2 mm / 10 m



Quintuplet



3° ± 1°



≤ 4s



Mangetic damping



10 m



50 m



-10 ℃ - 50 ℃



-20 ℃ - 70 ℃



3.5 hours



Li-ion battery 3.7V 3200mAh / 4 x 1.5 V LR 06 ( AA ), 800 mA max



IP 54



 183.3 x 122 x 136.8 mm



900 gram

Functional configuration



Horizontal line with dot



Vertical line 1 with dot



Vertical line 1  &  2  with dots



Vertical line 1, 2, 3 & 4  with dots



Cross line with dot



Switch



Pulse pattern

●



●



●



●



●



●



●

Accessories



Glasses



Target board



Charger with adapter cable



Li-ion battery



User manual



Aluminium case



Color paper box

●



●



●



●



●



●



●

Description:      Standard configuration;      It is optional;   —   Cannot configuration

Measurement errors increase under adverse operating conditions.
