Schematic

Item number and size

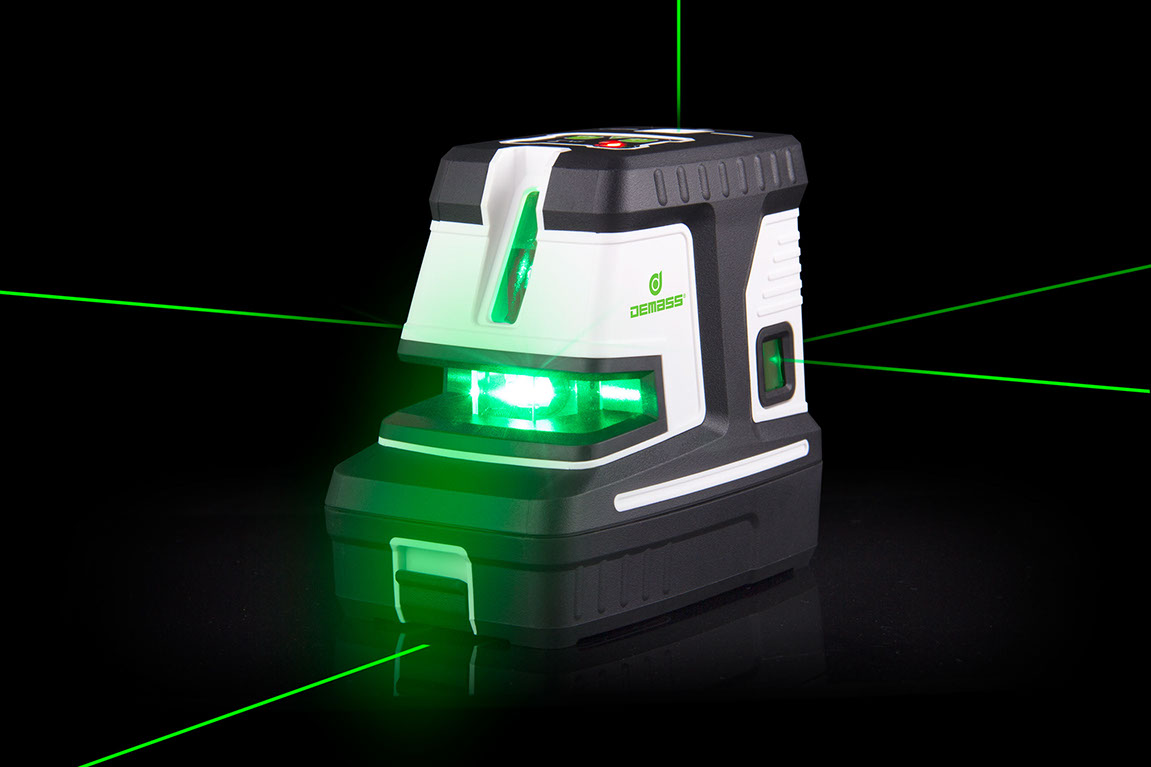

LLevel B3 - G



Printing



ABS with TPR



Label



Housing





Technical data



Item number



Laser colour



Laser diode



Laser hazard class



Laser max. output



Laser wave length



Accuracy



Laser module



Compensation range



Self-leveling time



Self-leveling method



Operating distance



Operating distance with detector



Operating temperature



Storage temperature



Operating time



Battery type



Ingress protection



Device diamension



Device weight

LLevel B3 - G



Green



Osran 30mW



Class 2



≤ 1mW



510 - 530 nm



± 3 mm / 15 m



Triple



4° ± 1°



≤ 4s



Mangetic damping



30 m



50 m



-10 ℃ - 50 ℃



-20 ℃ - 70 ℃



4 hours



4 x 1.5 V  LR 06 ( AA ), 800 mA max



IP 54



108.3 x 120 x 76 mm



520 gram

Functional configuration



Horizontal line



Vertical line



Cross-line



5 dots



Cross-line with 5 dots



Switch



Pulse pattern

●



●



●



●



●



●



●

Accessories



Adapter ( PV5 )



Target board



Batteries



User manual



Soft bag



Color paper box

●



●



●



●



●



●

Description:      Standard configuration;      It is optional;   —   Cannot configuration

Measurement errors increase under adverse operating conditions.
