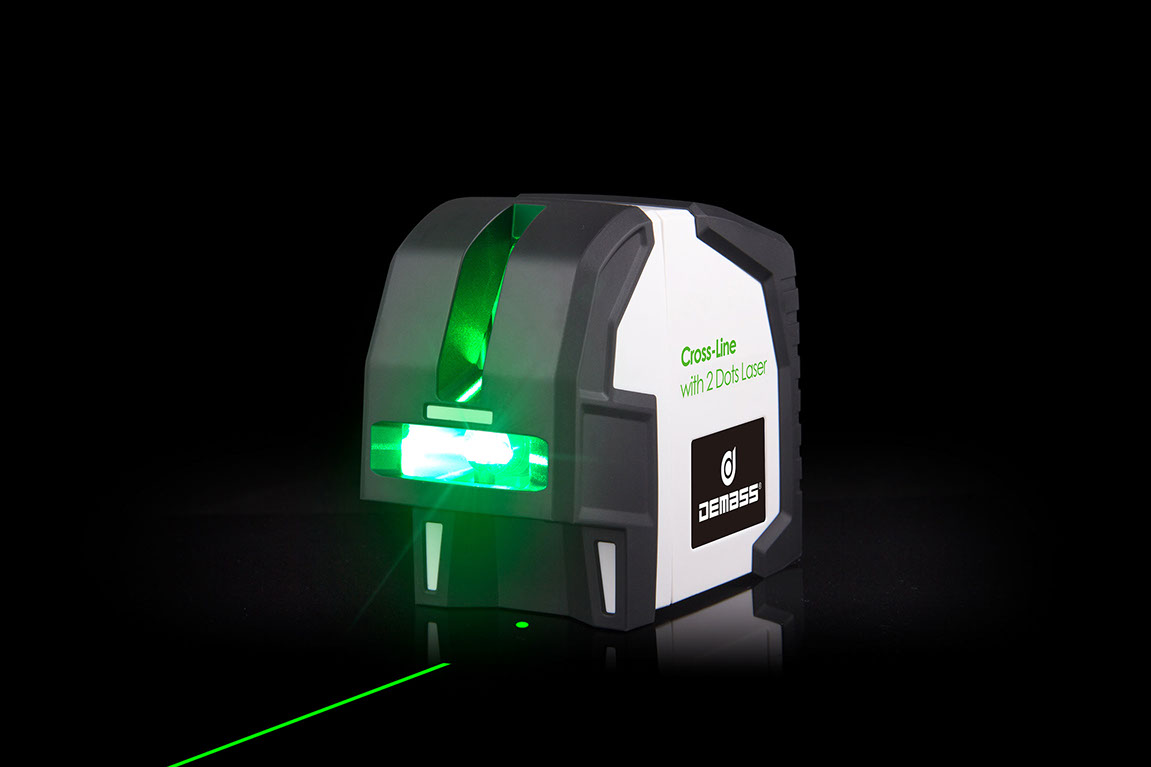

Schematic

Item number and size

LLevel B2 - G



Printing and label



ABS with TPR



Label



Housing





Technical data



Item number



Laser colour



Laser diode



Laser hazard class



Laser max. output



Laser wave length



Accuracy



Laser module



Compensation range



Self-leveling time



Self-leveling method



Operating distance



Operating distance with detector



Operating temperature



Storage temperature



Operating time



Battery type



Ingress protection



Device diamension



Device weight

LLevel B2 - G



Green



Osran 30mW



Class 2



≤ 1mW



510 - 530 nm



± 3 mm / 10 m



Double



4° ± 1°



≤ 4s



Mangetic damping



30 m



50 m



-10 ℃ - 50 ℃



-20 ℃ - 70 ℃



4 hours



4 x 1.5 V  LR 06 ( AA ), 800 mA max



IP 54



96.8 x 115.2 x 60.7 mm



460 gram

Functional configuration



Horizontal line with up & plumb dots



Vertical line



Cross-line with up & plumb dots



Switch



Pulse pattern

●



●



●



●



●

Accessories



Mounting Bracket ( PV3 )



Target board



Batteries



User manual



Soft bag



Color paper box

●



●



●



●



●



●

Description:      Standard configuration;      It is optional;   —   Cannot configuration

Measurement errors increase under adverse operating conditions.
