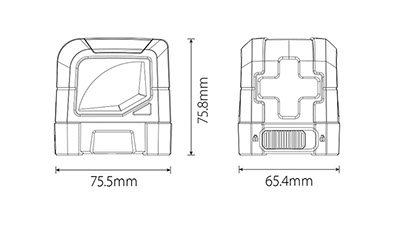

Schematic

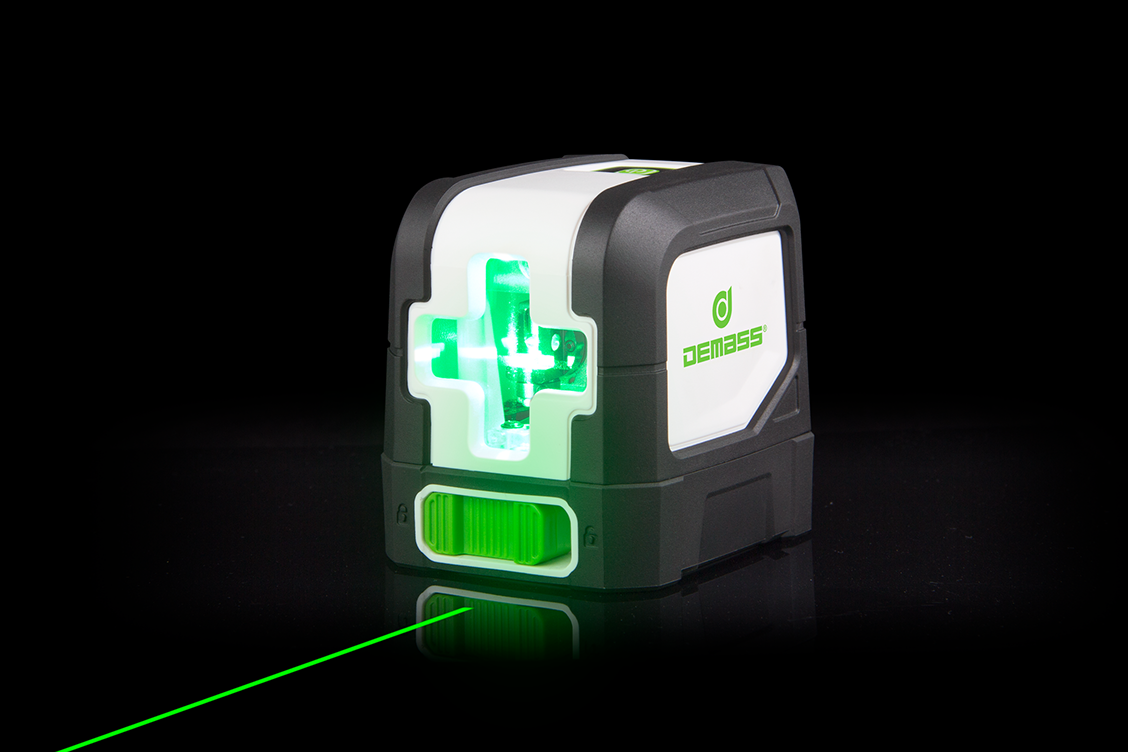

Item number and size

LLevel A1 - G



Printing



ABS with TPR



Label



Housing





Technical data



Item number



Laser colour



Laser diode



Laser hazard class



Laser max. output



Laser wave length



Accuracy



Laser module



Compensation range



Self-leveling time



Self-leveling method



Operating distance



Operating temperature



Storage temperature



Operating time



Battery type



Ingress protection



Device diamension



Device weight



LLevel A1 - G



Green



Osran 30mW



Class 2



≤ 1mW



510 - 530 nm



± 3 mm / 10 m



Single



4° ± 1°



≤ 4s



Mangetic damping



30 m



-10 ℃ - 50 ℃



-20 ℃ - 70 ℃



4 hours



2 x 1.5 V  LR 06 ( AA ), 400 mA max



IP 54



75.8 x 75.5 x 65.4 mm



260 gram



Functional configuration



Horizontal line



Vertical line



Switch

●



●



—

Accessories



Mounting Bracket ( PV1 )



Batteries



User manual



Soft bag



Color paper box

●



●



●



●



●

Description:      Standard configuration;      It is optional;   —   Cannot configuration

Measurement errors increase under adverse operating conditions.
