Item number and size

LDMeter DB20

20 m

66 ft

LDMeter DB30

30 m

100 ft

LDMeter DB40

40 m

131 ft

Label



Housing



Packaging



User manual

Printing



Vacuum filmed ABS with TPR



Single display box

Technical data



Item number



Measuring range



Measuring accuracy



Minimum display unit



Measuring units



Measuring times



Laser hazard class



Laser colour



Laser wave length



Laser max. output



Display type



Operating temperature



Storage temperature



Ingress protection



Battery life



Battery type



Automatic laser off time



Automatic power off time



Drop test



Device diamension



Device weight

                          LDMeter DB20                   LDMeter DB30                    LDMeter DB40



                          0.05 - 20 m                         0.05 - 30 m                          0.05 - 40 m



± 3 mm



1 mm



m / in / ft



7 times per second



Class 2



Red



620-690 nm



≤ 1 mW



1.44" TFT-LCD with 4 lines, colour text on black background



0 - 40 ℃



-20 - 65 ℃



IP54



2,000 times measurements



3.7 V,  Li-ion



30 s



90 s



1.5 m height

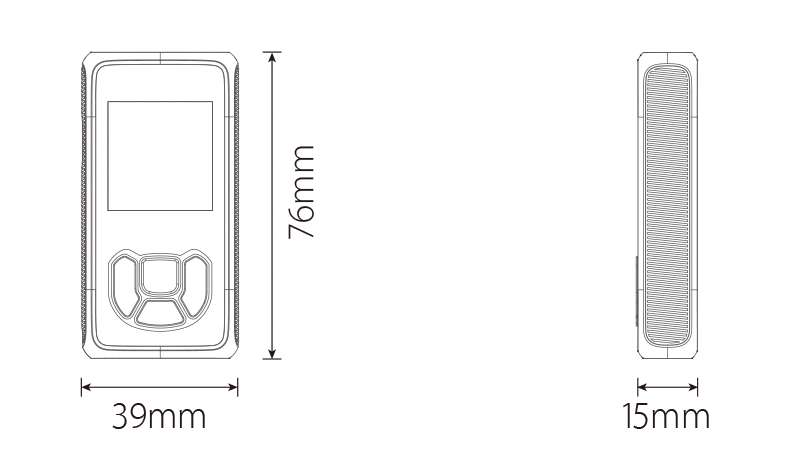

76 x 39 x 15 mm



36 gram

Functional configuration



Distance measurement



Continuous measurement



Min. / Max. measurement



Unit switch



Fore and aft datum switch



Area / Volume measurement



Pythagorean theorem measurement



Addition / subtraction measurement



Data storage



Angular measurement



Buzzer display



Bluetooth

















● ( Last 10 values )







Designed in 2019

Description:      Standard configuration;      It is optional;   —   Cannot configuration

Measurement errors increase under adverse operating conditions.
