Item number and size

LDMeter DA15

15 m

50 ft

LDMeter DA20

20 m

66 ft

LDMeter DA30

30 m

100 ft

LDMeter DA25

25 m

82 ft

Label



Housing



Packaging



User manual



Certificate

Printing



ABS



Single display box







​ – LVD

Low Voltage Directive 2014/35/EU



​ – EMC

Electromagnetic Compatibility Directive 2014/30/EU



IEC 60825 – 1

Safety of Laser Products



IEC 60529

Degrees of Protection Provided by Enclosures ( IP code )

LDMeter DA25



0.05 - 25 m

LDMeter DA30



0.05 - 30 m

Technical data



Item number



Measuring range



Measuring accuracy



Minimum display unit



Measuring units



Measuring times



Laser hazard class



Laser colour



Laser wave length



Laser max. output



Display type



Operating temperature



Storage temperature



Ingress protection



Battery life



Battery type



Automatic laser off time



Automatic power off time



Drop test

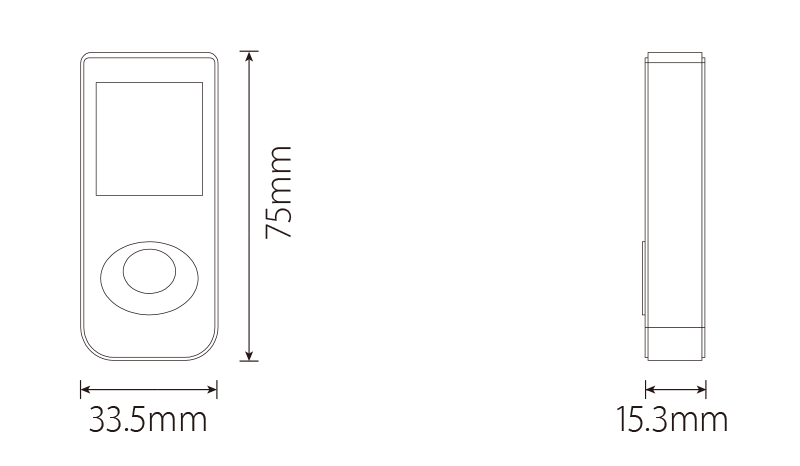

Device diamension



Device weight

Functional configuration



Distance measurement



Continuous measurement



Min. / Max. measurement



Unit switch



Fore and aft datum switch



Area / Volume measurement



Pythagorean theorem measurement



Addition / subtraction measurement



Data storage



Angular measurement



Buzzer display



Bluetooth

± 3 mm



1 mm



m / in / ft



7 times per second



Class 2



Red



620-690 nm



≤ 1 mW



1.44" TFT-LCD with 4 lines, colour text on black background



0 - 40 ℃



-20 - 65 ℃



IP54



2,000 times measurements



3.7 V,  Li-ion



30 s



90 s



1.5 m height



75 x 33.5 x 15.3 mm



35 gram

LDMeter DA15



0.05 - 15 m

LDMeter DA20



0.05 - 20 m

●



●



●



●



●



●



●



●



● ( Last 10 values )



—



—



—

Designed in 2018

Description:      Standard configuration;      It is optional;   —   Cannot configuration

Measurement errors increase under adverse operating conditions.
