Item number and size

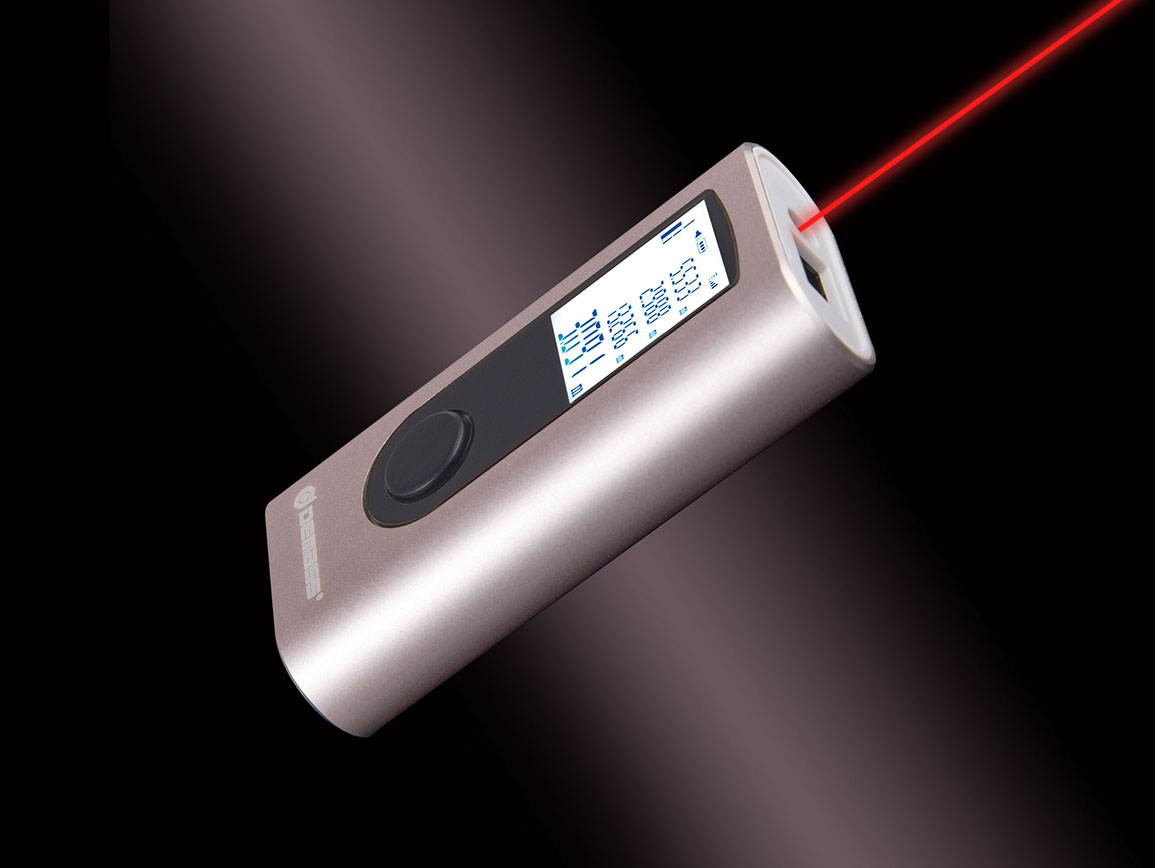

LDMeter C15

15 m

50 ft

LDMeter C20

20 m

66 ft

LDMeter C30

30 m

100 ft

LDMeter C25

25 m

82 ft

– EMC

Electromagnetic Compatibility Directive 2014/30/EU



IEC 60825 – 1

Safety of Laser Products



REACH – Directive 1907/2006/EC



RoHS – Directive 2011/65/EU



PAHs

Printing



Aluminium oxidation



Single display box

Label



Housing



Packaging



User manual



Certificate

Technical data



Item number



Measuring range



Measuring accuracy



Minimum display unit



Measuring units



Measuring times



Laser hazard class



Laser colour



Laser wave length



Laser max. output



Display type



Operating temperature



Storage temperature



Battery life



Battery type



Automatic laser off time



Automatic power off time



Drop test



Device diamension



Device weight

LDMeter C15                          LDMeter C20                         LDMeter C25                         LDMeter C30



0.05 - 15 m                              0.05 - 20 m                            0.05 - 25 m                             0.05 - 30 m



± 3 mm



1 mm



m / in / ft



3 times per second



Class 2



Red



620-690 nm



≤ 1 mW



0.95" LCD backlights with 4 lines, black text on white background



0 - 40 ℃



-20 - 60 ℃



3,000 times measurements



3.7 V,  Li-ion



15 s



45 s



1.5 m height



63 x 33 x 15.5 mm



30 gram

Functional configuration



Distance measurement



Continuous measurement



Min. / Max. measurement



Unit switch



Fore and aft datum switch



Area / Volume measurement



Pythagorean theorem measurement



Addition / subtraction measurement



Data storage



Angular measurement



Buzzer display



Bluetooth























Designed in 2018

Description:      Standard configuration;      It is optional;   —   Cannot configuration

Measurement errors increase under adverse operating conditions.
