Item number and size

LDMeter A15

15 m

50 ft

LDMeter A20

20 m

66 ft

LDMeter A30

30 m

100 ft

LDMeter A25

25 m

82 ft

​ – EMC

Electromagnetic Compatibility Directive 2014/30/EU



IEC 60825 – 1

Safety of Laser Products



REACH – Directive 1907/2006/EC



RoHS – Directive 2011/65/EU



PAHs

Label



Housing



Packaging



User manual



Certificate

Printing



ABS



Single display box

A1

A2

A3

A4

A5

LDMeter A25



0.05 - 25 m

LDMeter A30



0.05 - 30 m

Technical data



Item number



Measuring range



Measuring accuracy



Minimum display unit



Measuring units



Measuring times



Laser hazard class



Laser colour



Laser wave length



Laser max. output



Display type



Operating temperature



Storage temperature



Battery life



Battery type



Automatic laser off time



Automatic power off time



Drop test



Device diamension



Device weight

LDMeter A15



0.05 - 15 m

LDMeter A20



0.05 - 20 m

± 3 mm



1 mm



m / in / ft



7 times per second



Class 2



Red



620-690 nm



≤ 1 mW



1.44" TFT-LCD with 4 lines, colour text on black background



0 - 40 ℃



-20 - 65 ℃



5,000 times measurements



2 x 1.5 V LR03 ( AAA ), 400 mA max.



30 s



180 s



1.5 m height

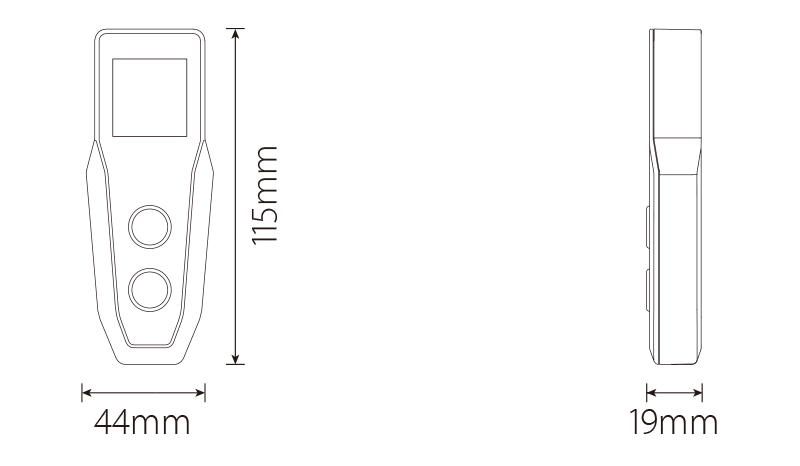

115 x 44 x 19 mm



40 gram

A1























● Distance measurement

● Continuous measurement

● Min. / Max. measurement

A2























● Distance measurement

● Continuous measurement

● Min. / Max. measurement

● Unit switch

A5























● Distance measurement

● Continuous measurement

● Min. / Max. measurement

● Fore and aft datum switch

● Area / volum measurement

● Pythagorean theorem measurement

A3























● Distance measurement

● Continuous measurement

● Min. / Max. measurement

● Fore and aft datum switch

Functional configuration



Distance measurement



Continuous measurement



Min. / Max. measurement



Unit switch



Fore and aft datum switch



Area / Volume measurement



Pythagorean theorem measurement



Addition / subtraction measurement



Data storage



Angular measurement



Buzzer display



Bluetooth

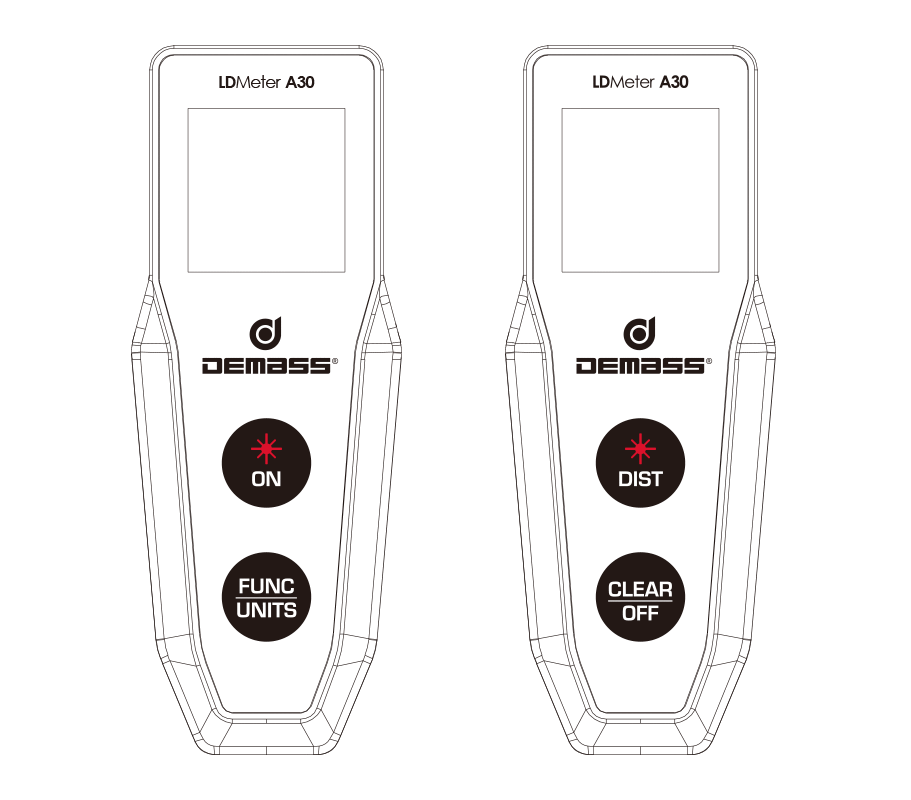

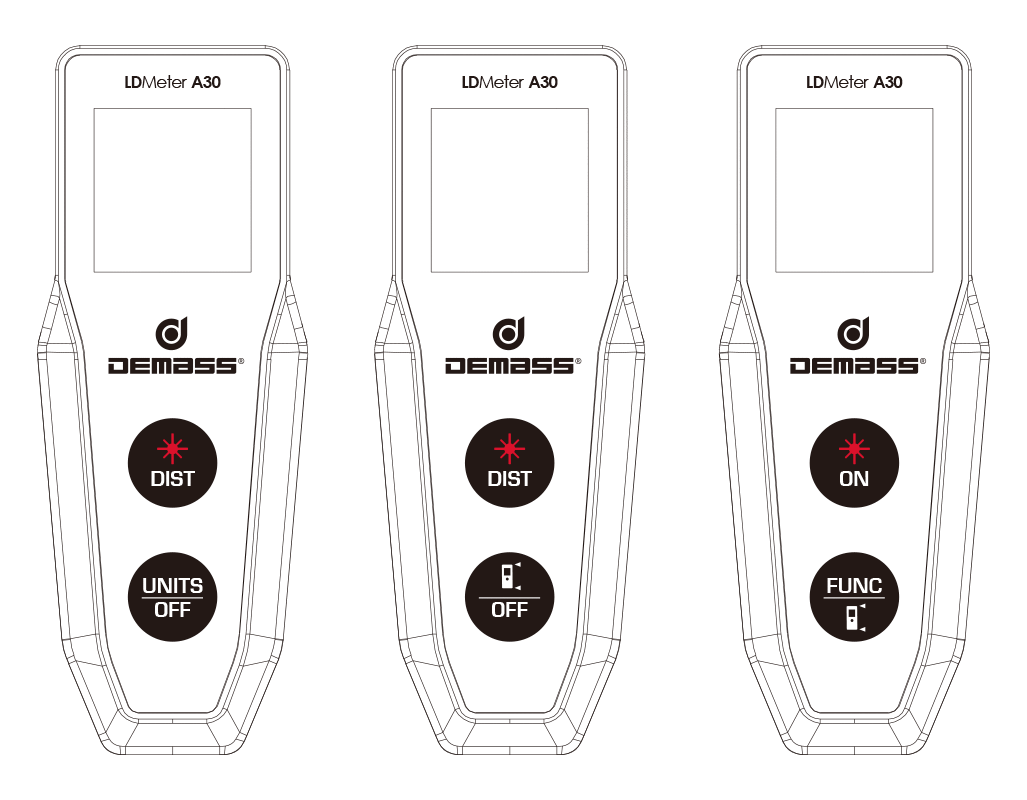

Different button functions

●



●



●





Choose one out of the two

​



—



—



—



—



—



—



—

●



●



●





Choose one out of the two

​



●



●



—



—



—



—



—

A4























● Distance measurement

● Continuous measurement

● Min. / Max. measurement

● Unit switch

● Area / volum measurement

● Pythagorean theorem measurement

Designed in 2018

Description:      Standard configuration;      It is optional;   —   Cannot configuration

Measurement errors increase under adverse operating conditions.
